| View previous topic :: View next topic |
| Author |
Message |
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
 Posted: Sat Nov 19, 2011 9:54 pm Post subject: Brad's 2011 Charger |
 |
|
Here's the kit. I only paid 8.99 with a 40% off Hobby Lobby coupon obtained from their website.
I tried to remove the paint with Super Clean but it did not work very well.
I switched to 95% denatured alchohol and got much better results.
I'm now ready to sand the body and add the front and rear spoilers and also change the quarter glasses from a Chevy to a Dodge.
I'm going to leave the hood shut and keep the interior and frame box stock. I'm mainly going to try make the Chevy look like a Dodge and update the front and rear spoilers to what they are running in Cup right now. I'm also going to have to make my own decals because the ones available to do this car are 1/24th scale and will look way too big on this 1/25th scale body.
_________________
My photobucket:
http://smg.photobucket.com/albums/v212/texwardfan/ |
|
| Back to top |
|
 |
new2
Joined: 10 Jan 2006
Posts: 934
|
| Posted: Sun Nov 20, 2011 3:03 am Post subject: |
|
|
| you'd be surprised....I make 1/24 lionel 'scale' sheets...did the Biffle Pure Michigan scheme he ran at MIS...had a guy ask for AMT scaled 1/25. All I had to change was the hood and the roof ever so slightly..everything else fit great. |
|
| Back to top |
|
|
st0n3y19
Joined: 21 Feb 2011
Posts: 787
Location: Milford, OH
|
| Posted: Sun Nov 20, 2011 3:33 am Post subject: |
|
|
Just a tip for stripping these bodies, let them soak in the alcohol for a few hours or overnight. By doing that, it will pretty much strip the body bare, with little to no scrubbing.
_________________
Jason
Buidling anything Terry Labonte.
 |
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
| Posted: Sun Nov 20, 2011 8:40 pm Post subject: |
|
|
You have to cut the front of the frame off and glue it back later to change the front end to a current cot.

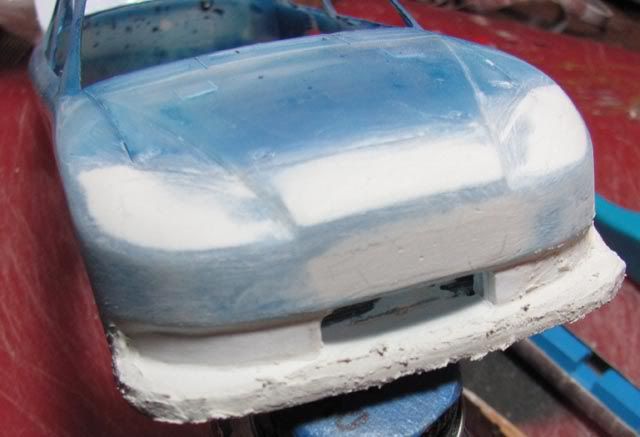

First you have to remove the raised headlamp areas. The Dodge is flat here. I tryed using a course sanding stick but it was taking forever.
I switched to just scraping them with the edge of a #11 blade and it went much faster.
I drilled holes where the putty will go to help it adhere better. Also cut out the square opening in the middle lower half of the front end.
Added the Squadron white putty where needed for now.
Added the lower strip, leaving just the edge of the old splitter showing.
Will have to wait till Thanksgiving to proceed.
_________________
My photobucket:
http://smg.photobucket.com/albums/v212/texwardfan/ |
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
| Posted: Tue Nov 22, 2011 11:23 am Post subject: |
|
|
After watching the race on Sunday and checking my reference pictures I am going to have to extend the splitter out just a little.
_________________
My photobucket:
http://smg.photobucket.com/albums/v212/texwardfan/ |
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
|
| Back to top |
|
|
Indy
Joined: 15 Jun 2006
Posts: 11726
Location: Texas
|
| Posted: Sat Nov 26, 2011 2:46 am Post subject: |
|
|
Cool  Nice to see Penske cars getting built
Jordan
_________________
On The Bench
Buddy build |
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
|
| Back to top |
|
|
jojekin
Joined: 15 May 2011
Posts: 235
Location: Phoenix AZ
|
| Posted: Sun Nov 27, 2011 12:39 am Post subject: |
|
|
I can see the Charger taking shape. Great work!
_________________
"You can tell that you’re in trouble when you feel the air on the back of your neck instead of in your face." - Buddy Baker |
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
| Posted: Mon Nov 28, 2011 11:37 am Post subject: |
|
|
Did some more sanding but still not quite right.
Added some more putty . Hopefully just one more sanding and I can move on to finish the rear spoiler.
_________________
My photobucket:
http://smg.photobucket.com/albums/v212/texwardfan/ |
|
| Back to top |
|
|
jake
Joined: 04 Nov 2009
Posts: 2025
Location: North Carolina
|
| Posted: Tue Nov 29, 2011 10:43 pm Post subject: |
|
|
| WOW shaping up nicely! I love nose mods and yours is looking amazing! |
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
|
| Back to top |
|
|
Onti
Joined: 24 Nov 2011
Posts: 103
Location: McDonough, GA
|
| Posted: Thu Dec 01, 2011 3:30 am Post subject: chager |
|
|
You got it going. Looks good,
Have you ever tried brake fluid to clean paint and decals.? It works great, place models in tub like you did fill with break fluid to cover model. Till paint start to bubble, (time will vary) when it does scrub off, stuborn spots soak again. when clean just wash with soap and water, cleans all nook and creases, and beauty of it seal containerwith lid and you may use the fluid for other models. at least two or three times until real dirty. Just a tip you might want to try.
As for the dodge it looks real good.
PM me ill be casting the front grill and air damn along with hood for that kit. Have window template and window material. it should be done in about a week. I also carry other detailing parts, like duct work and coolboxes,
Keep up the good work, Luis |
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
| Posted: Fri Dec 02, 2011 11:41 am Post subject: |
|
|
I made some diamond shaped pieces of styrene to splt but not break for the spoiler braces. After installing I added some putty to make them more uniform. It looks like the braces are not symetrical side to side and the reason being is that the real cars braces are not symetrical side to side.
_________________
My photobucket:
http://smg.photobucket.com/albums/v212/texwardfan/ |
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
|
| Back to top |
|
|
jake
Joined: 04 Nov 2009
Posts: 2025
Location: North Carolina
|
| Posted: Sat Dec 03, 2011 1:13 pm Post subject: |
|
|
| Strange, but true.. I never noticed that before. Good catch! |
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
|
| Back to top |
|
|
naskoalcar
Joined: 23 Sep 2008
Posts: 351
Location: France
|
| Posted: Sun Dec 04, 2011 11:09 pm Post subject: |
|
|
Nice job.
Bernard. |
|
| Back to top |
|
|
jake
Joined: 04 Nov 2009
Posts: 2025
Location: North Carolina
|
| Posted: Mon Dec 05, 2011 9:58 pm Post subject: |
|
|
Mark, you are KILLING it with these mods!!!    :santabanana:
I am going to absolutely love this one....AWESOME........ |
|
| Back to top |
|
|
larrychilders80
Joined: 22 Sep 2008
Posts: 331
Location: Plant City, FL
|
| Posted: Tue Dec 06, 2011 5:18 pm Post subject: |
|
|
 |
|
| Back to top |
|
|
Mach2
Joined: 28 Feb 2003
Posts: 11800
Location: Clearlake Oaks, CA sure is prudy here
|
| Posted: Tue Dec 06, 2011 9:15 pm Post subject: |
|
|
Mark, that's some sweet modeling going on there. Rock On
_________________
Mick
 |
|
| Back to top |
|
|
Wedge
Joined: 03 Jul 2003
Posts: 5467
Location: Upper LA (Louisiana)
|
| Posted: Wed Dec 07, 2011 3:17 am Post subject: |
|
|
Great work brother!
Wade |
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
| Posted: Thu Dec 08, 2011 2:24 pm Post subject: |
|
|
Just need to putty the quarter extensions and enlarge the fuel intake hole and add a fuel filler. After that I should be able to prime the body
_________________
My photobucket:
http://smg.photobucket.com/albums/v212/texwardfan/ |
|
| Back to top |
|
|
jake
Joined: 04 Nov 2009
Posts: 2025
Location: North Carolina
|
| Posted: Thu Dec 08, 2011 11:10 pm Post subject: |
|
|
Mark, you really have a tallent for putty and sanding. That body is going to be wicked looking with its new blue paint! I cant wait to see this one!
|
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
|
| Back to top |
|
|
MarkJ
Joined: 18 Dec 2005
Posts: 2120
|
|
| Back to top |
|
|
|
